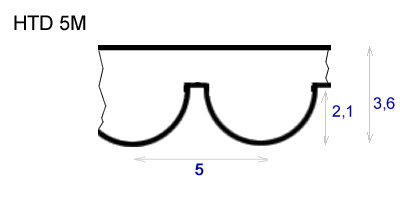

| Размерность зубчатых синхронных ремней HTD 5M, мм. | |||
|---|---|---|---|
 |
|||
| профиль | Шаг зуба, p (мм) |
Высота h (мм) |
Высота зуба h1 (мм) |
| HTD 3M | 3,0 | 2,4 | 1,2 |
| HTD 5M | 5,0 | 3,6 | 2,1 |
| HTD 8M | 8,0 | 5,6 | 3,4 |
| HTD 14M | 14,0 | 10,0 | 6,1 |
| HTD 20M | 20,0 | 13,2 | 8,4 |
Стандартные длины ремней HTD:
| Размеры зубчатых синхронные ремней HTD 5M | ||
| Кол-во зубьев ремня | Длина ремня (мм) | Обозначение ремня |
| 42 | 210 | HTD 5M 210 |
| 45 | 225 | HTD 5M 225 |
| 47 | 235 | HTD 5M 235 |
| 50 | 250 | HTD 5M 250 |
| 51 | 255 | HTD 5M 255 |
| 54 | 270 | HTD 5M 270 |
| 55 | 275 | HTD 5M 275 |
| 56 | 280 | HTD 5M 280 |
| 58 | 290 | HTD 5M 290 |
| 59 | 295 | HTD 5M 295 |
| 60 | 300 | HTD 5M 300 |
| 62 | 310 | HTD 5M 310 |
| 64 | 320 | HTD 5M 320 |
| 65 | 325 | HTD 5M 325 |
| 66 | 330 | HTD 5M 330 |
| 67 | 335 | HTD 5M 335 |
| 68 | 340 | HTD 5M 340 |
| 69 | 345 | HTD 5M 345 |
| 70 | 350 | HTD 5M 350 |
| 72 | 360 | HTD 5M 360 |
| 73 | 365 | HTD 5M 365 |
| 74 | 370 | HTD 5M 370 |
| 75 | 375 | HTD 5M 375 |
| 76 | 380 | HTD 5M 380 |
| 77 | 385 | HTD 5M 385 |
| 78 | 390 | HTD 5M 390 |
| 79 | 395 | HTD 5M 395 |
| 80 | 400 | HTD 5M 400 |
| 81 | 405 | HTD 5M 405 |
| 82 | 410 | HTD 5M 410 |
| 83 | 415 | HTD 3M 415 |
| 84 | 420 | HTD 5M 420 |
| 85 | 425 | HTD 5M 425 |
| 86 | 430 | HTD 3M 430 |
| 87 | 435 | HTD 5M 435 |
| 88 | 440 | HTD 5M 440 |
| 90 | 450 | HTD 5M 450 |
| 92 | 460 | HTD 5M 460 |
| 93 | 465 | HTD 5M 465 |
| 94 | 470 | HTD 5M 470 |
| 95 | 475 | HTD 5M 475 |
| 96 | 480 | HTD 5M 480 |
| 97 | 485 | HTD 5M 485 |
| 98 | 490 | HTD 5M 490 |
| 99 | 495 | HTD 5M 495 |
| 100 | 500 | HTD 5M 500 |
| 101 | 505 | HTD 5M 505 |
| 102 | 510 | HTD 5M 510 |
| 103 | 515 | HTD 5M 515 |
| 104 | 520 | HTD 5M 520 |
| 105 | 525 | HTD 5M 525 |
| 106 | 530 | HTD 5M 530 |
| 107 | 535 | HTD 5M 535 |
| 108 | 540 | HTD 5M 540 |
| 110 | 550 | HTD 5M 550 |
| 112 | 560 | HTD 5M 560 |
| 113 | 565 | HTD 5M 565 |
| 114 | 570 | HTD 5M 570 |
| 115 | 575 | HTD 5M 575 |
| 116 | 580 | HTD 5M 580 |
| 117 | 585 | HTD 5M 585 |
| 118 | 590 | HTD 5M 590 |
| 119 | 595 | HTD 5M 595 |
| 120 | 600 | HTD 5M 600 |
| 122 | 610 | HTD 5M 610 |
| 123 | 615 | HTD 5M 615 |
| 124 | 620 | HTD 5M 620 |
| 125 | 625 | HTD 5M 625 |
| 127 | 635 | HTD 5M 635 |
| 128 | 640 | HTD 5M 640 |
| 129 | 645 | HTD 5M 645 |
| 130 | 650 | HTD 5M 650 |
| 131 | 655 | HTD 5M 655 |
| 132 | 660 | HTD 5M 660 |
| 133 | 665 | HTD 5M 665 |
| 134 | 670 | HTD 5M 670 |
| 135 | 675 | HTD 5M 675 |
| 136 | 680 | HTD 5M 680 |
| 137 | 685 | HTD 5M 685 |
| 138 | 690 | HTD 5M 690 |
| 139 | 695 | HTD 5M 695 |
| 140 | 700 | HTD 5M 700 |
| 142 | 710 | HTD 5M 710 |
| 143 | 715 | HTD 5M 715 |
| 144 | 720 | HTD 5M 720 |
| 146 | 730 | HTD 5M 730 |
| 148 | 740 | HTD 5M 740 |
| 149 | 745 | HTD 5M 745 |
| 150 | 750 | HTD 5M 750 |
| 151 | 755 | HTD 5M 755 |
| 152 | 760 | HTD 5M 760 |
| 153 | 765 | HTD 5M 765 |
| 154 | 770 | HTD 5M 770 |
| 155 | 775 | HTD 5M 775 |
| 156 | 780 | HTD 5M 780 |
| 158 | 790 | HTD 5M 790 |
| 159 | 795 | HTD 5M 795 |
| 160 | 800 | HTD 5M 800 |
| 162 | 810 | HTD 5M 810 |
| 163 | 815 | HTD 5M 815 |
| 165 | 825 | HTD 5M 825 |
| 166 | 830 | HTD 5M 830 |
| 167 | 835 | HTD 5M 835 |
| 168 | 840 | HTD 5M 840 |
| 169 | 845 | HTD 5M 845 |
| 170 | 850 | HTD 5M 850 |
| 172 | 860 | HTD 5M 860 |
| 174 | 870 | HTD 5M 870 |
| 176 | 880 | HTD 5M 880 |
| 177 | 885 | HTD 5M 885 |
| 178 | 890 | HTD 5M 890 |
| 179 | 895 | HTD 5M 895 |
| 180 | 900 | HTD 5M 900 |
| 182 | 910 | HTD 5M 910 |
| 184 | 920 | HTD 5M 920 |
| 185 | 925 | HTD 5M 925 |
| 186 | 930 | HTD 5M 930 |
| 187 | 935 | HTD 5M 935 |
| 190 | 950 | HTD 5M 950 |
| 192 | 960 | HTD 5M 960 |
| 193 | 965 | HTD 5M 965 |
| 195 | 975 | HTD 5M 975 |
| 196 | 980 | HTD 5M 980 |
| 198 | 990 | HTD 5M 990 |
| 200 | 1000 | HTD 5M 1000 |
| 202 | 1010 | HTD 5M 1010 |
| 203 | 1015 | HTD 5M 1015 |
| 205 | 1025 | HTD 5M 1025 |
| 208 | 1040 | HTD 5M 1040 |
| 210 | 1050 | HTD 5M 1050 |
| 214 | 1070 | HTD 5M 1070 |
| 216 | 1080 | HTD 5M 1080 |
| 220 | 1100 | HTD 5M 1100 |
| 223 | 1115 | HTD 5M 1115 |
| 224 | 1120 | HTD 5M 1120 |
| 225 | 1125 | HTD 5M 1125 |
| 227 | 1135 | HTD 5M 1135 |
| 230 | 1150 | HTD 5M 1150 |
| 232 | 1160 | HTD 5M 1160 |
| 236 | 1180 | HTD 5M 1180 |
| 239 | 1195 | HTD 5M 1195 |
| 240 | 1200 | HTD 5M 1200 |
| 242 | 1210 | HTD 5M 1210 |
| 245 | 1225 | HTD 5M 1225 |
| 250 | 1250 | HTD 5M 1250 |
| 256 | 1280 | HTD 5M 1280 |
| 258 | 1290 | HTD 5M 1290 |
| 259 | 1295 | HTD 5M 1295 |
| 270 | 1350 | HTD 5M 1350 |
| 278 | 1390 | HTD 5M 1390 |
| 284 | 1420 | HTD 5M 1420 |
| 300 | 1500 | HTD 5M 1500 |
| 304 | 1520 | HTD 5M 1520 |
| 306 | 1530 | HTD 5M 1530 |
| 308 | 1540 | HTD 5M 1540 |
| 320 | 1600 | HTD 5M 1600 |
| 327 | 1635 | HTD 5M 1635 |
| 338 | 1690 | HTD 5M 1690 |
| 344 | 1720 | HTD 5M 1720 |
| 360 | 1800 | HTD 5M 1800 |
| 370 | 1850 | HTD 5M 1850 |
| 389 | 1945 | HTD 5M 1945 |
| 400 | 2000 | HTD 5M 2000 |
| 410 | 2050 | HTD 5M 2050 |
| 420 | 2100 | HTD 5M 2100 |
| 422 | 2110 | HTD 5M 2110 |
| 440 | 2200 | HTD 5M 2200 |
| 505 | 2525 | HTD 5M 2525 |
| 530 | 2650 | HTD 5M 2650 |
| 612 | 3060 | HTD 5M 3060 |
| 800 | 4000 | HTD 5M 4000 |
| 852 | 4260 | HTD 5M 4260 |
| 1060 | 5300 | HTD 5M 5300 |
